Technical :

CNC Machined Fin vs. Molded Fin – Key Differences Explained

The performance of a windsurfing fin is not only defined by its profile and outline, but also by the manufacturing method. Two of the most common techniques are CNC machining and molding, and each comes with its own characteristics.

CNC machined Fin :

• Process: The fin is milled directly from a solid plate of carbon composite (or G10) using a CNC machine.

• Consistency: Every piece is identical to the digital CAD design.

• Stiffness: Mechanical properties remain uniform throughout the entire blade.

• Result: Reliable and predictable performance, without variation from one fin to another.

• Price: CNC fins are significantly more affordable than molded fins.

Molded Fin :

• Process: Layers of carbon fibers or fiberglass are laid into a mold and cured under pressure or vacuum.

• Flexibility: The internal layup can be optimized, allowing custom flex and torsional characteristics along the fin blade.

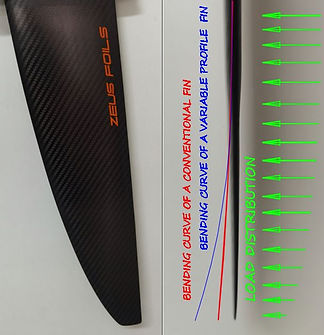

• Flex curve : Optimized for each rider's style , weight , windsurfing level . Usually the flex starts from the middle of the fin,

• Weight: Usually lighter than a CNC machined fin.

• Damping properties :  much better than cnc machined fins  due to damping materials between carbon layers

• Performance: Provides a more “lively” and responsive feel on the water.

• Choice for athletes: Preferred in high-level racing, where tuned flex and maximum efficiency are essential.

​

Summary :

• CNC machined fins focus on precision, stiffness, and repeatability, at a lower cost.

• Molded fins focus on customized flex, reduced weight, and superior dynamic performance, making them the top choice for athletes and racing.​

Both methods are effective – the decision depends on whether the rider values affordability and consistency or prefers the superior performance and feel of molded technology.​​
